Heavy-duty construction provides long-term spill containment for vehicles, heavy equipment, tankers and more. Our Fail-Safe® MilBerm™ offers the best in portability and durability.

Request National
Stock Number

Overview

  • Single-piece construction – patented wall-support system integral to berm provides unobstructed work space
  • Provides faster deployment – stronger structural integrity
  • Quick and easy setup – no assembly required
  • Heavy-duty fabric stands up to corrosive solvents and extended wear
  • Fail-Safe® flotation device on entry/exit walls, enabling drive-in and drive-out with no need to raise or lower wall
  • When in the upright and locked position, wall supports prevent snow and ice from interfering during a spill occurrence

Full Description

The Fail-Safe® MilBerm™ offers superior protection and chemical resistance against the harshest of liquids, including petroleum, oils, greases, and most acids. Unlike floating-wall-type berms that are susceptible to wall collapse and containment failure, the patented design features a stainless-steel brace that supports the wall at a full 90-degree locked position for secure, leakproof containment. A simple push on the walls unlocks the support and lays the wall down for drive-through capability from any angle. The end walls also feature the patented Fail-Safe flotation device that allows the user to leave the entry/exit walls in the down position, weather permitting. This enables the walls to auto-deploy to the upright position using the dynamics of fluid pressure to push the wall up without allowing a spill event. The end walls also include support with locking detent to keep the end walls upright should snow or ice be forecasted.

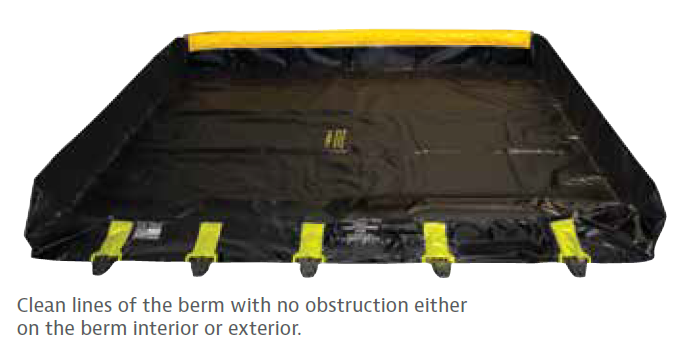

All military Fail-Safe MilBerms have patented wall designs that maximize usable space inside the berm and greatly reduce any tripping hazard on the berm perimeter. Reinforced CriticalCorner™ design with wraparound diagonal radio frequency welds offers exceptionally strong structural integrity to prevent seam leaks, provide fluid-tight reliability, and extend berm life expectancy. Finished hem edge on top of sidewall prevents fraying and adds strength. Each support includes a heavy-duty brass grommet for anchoring the berm under high wind conditions. Anchor stakes are not included.

MilBerm™ Comparison Chart

Choose TWO Truck Sizes To Compare
Compare Sizes
  5- or 7-Ton
with Fuel Pods
5- or 7-Ton
with Fuel Pods
2500-Gal
HEMTT
5000-Gal
Tanker
5000-Gal
Tanker
  Tanker 5 Ton Tanker 7 Ton Tanker 2500 Gal HEMTT Tanker 5000 Gal Tanker 5000 Gal
Recommended Berm
(Part #)
Recommended Berm
(Part #)
BC3CF-RLFS-1226
SPILL BERM
BC3CF-RLFS-1230
SPILL BERM
BC3CF-RLFS-1236
SPILL BERM
BC3CF-RLFS-1454
SPILL BERM
BC3CF-RLFS-1456
SPILL BERM
  Dimensions
Dimensions 12 ft x 26 ft x 1 ft
(3.7 m x 7.9 m x 0.3 m)
12 ft x 30 ft x 1 ft
(3.7 m x 9.1 m x 0.3 m)
12 ft x 36 ft x 1 ft
(3.7 m x 11.0 m x 0.3 m)
14 ft x 54 ft x 1 ft
(4.3 m x 16.5 m x 0.3 m)
14 ft x 56 ft x 1 ft
(4.3 m x 17.1 m x 0.3 m)
  Capacity
Capacity 2333 gal
(8831 L)
2592 gal
(9812 L)
3231 gal
(12,231 L)
5654 gal
(21,403 L)
5864 gal
(22,198 L)
  Weight
Weight 147 lbs
(67 kg)
164 lbs
(74 kg)
190 lbs
(86 kg)
296 lbs
(134 kg)
305 lbs
(138 kg)
  Folded Size
Folded Size 36 in x 36 in x 12 in
(914 mm x 914 mm x 305 mm)
36 in x 36 in x 16 in
(914 mm x 914 mm x 406 mm)
36 in x 36 in x 16 in
(914 mm x 914 mm x 406 mm)
42 in x 36 in x 18 in
(1067 mm x 914 mm x 457 mm)
42 in x 36 in x 18 in
(1067 mm x 914 mm x 457 mm)
  NSN
NSN 4235-01-569-8818 4235-01-569-8792 4235-01-569-8833 4235-01-550-3802 4235-01-569-8846
